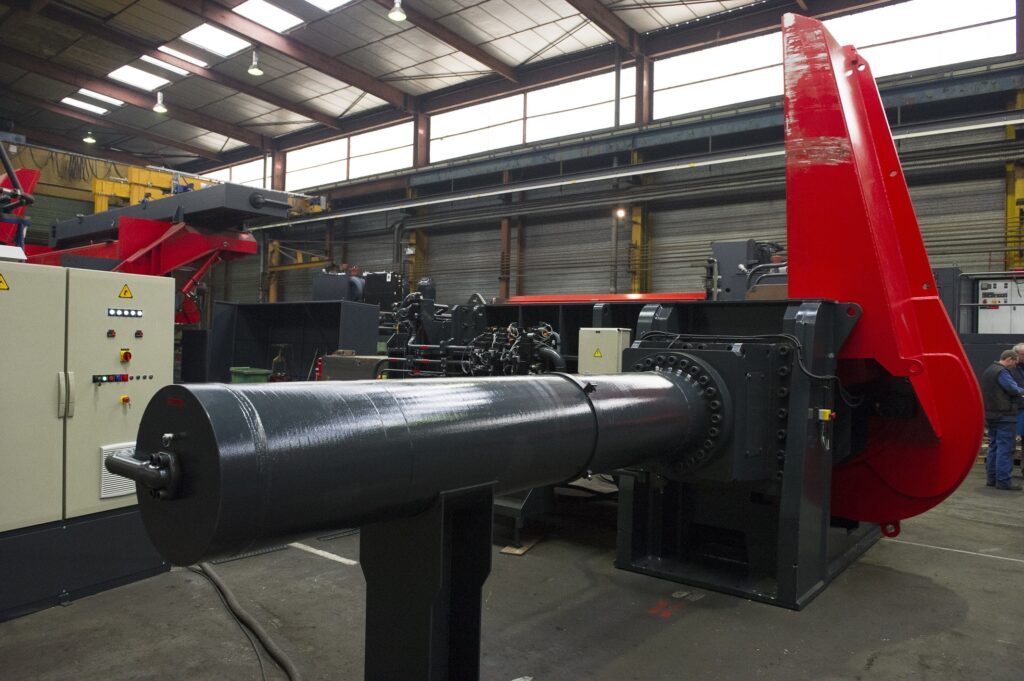

PCC lid balers are used to compact metal chutes and metal waste into high-density bales. They offer perfect versatility, being particularly suitable for the recycling of bulky and heterogeneous products.
Fully automatic and fed by means of a grapple, they provide an optimal response to the requirements of professionals in the industry and in the recycling of scrap and metals. They can be installed outdoors or indoors, and do not require any special civil engineering.
Specific advantages of the lid: Unequalled compaction efficiency
- The lid that completely covers the top of the press box makes it easy to load the material into the press.
- Thanks to the implantation of the lid in opposition to the piston of second compression, the baler offers a high compacting efficiency. The piston with a full guide system feeds the material into the area where the lid has the greatest force, which also helps to reduce cycle times.
- The positioning of the lid in relation to the piston allows the compacting cycle to work automatically. This means that the operator is no longer mobilized for compaction operations and frees up time for other operations.
- The bale can be taken over very easily by grapple in case of loading overflow.
- Cutting blades for products protruding from the box are no longer necessary, which helps to reduce maintenance costs.
Key Advantages
COPEX offers a wide range of lid balers which are characterized by their high performance and very long service life. They can meet all operating needs:
- Processing of all types of ferrous and non-ferrous waste: metal scrap (copper, aluminium, zinc, steel, stainless steel, etc.), household metal waste from selective collection, light scrap, etc.,
- Presses designed for industrial and recycling customers,
- Solidity and reliability thanks to a robust welded construction,
- Very high material densification,
- Feeding hopper adapted to the different materials to be treated and to the operating mode,
- Large loading opening,
- Adjustable mechanical stops on the compression pistons for precise guidance during compaction phases,
- Optimal protection of the compression cylinders by mechanical locking,
- Ease of installation without special civil engineering, meeting the space constraints of industrialists,
- Grooved wear plates when requested by the materials to be compacted to avoid any risk of jamming,
- Operational safety,
- Low noise level,
- Efficient hydraulics and high production outputs due to simultaneous movement completion,
- Fully automatic operation,
- Intuitive touch screen HMI interface for access to production parameters and operating data: Adjustable bale length, final pressure and density,
- Optimization of maintenance operations thanks to touch screen controls,
- Remote maintenance via modem,
- Reduced operating costs thanks to long and reliable guides.
Technical Features
| Model | P1CC 5030 | P1CC 6320 | P2CC 3030 | P2CC 4040 | P3CC 6060 |
| Bale section | 500 x 300 mm | 630 x 200 mm | 300 x 300 mm | 400 x 400 mm | 600 x 600 mm |
| Feed opening | 1100 x 500 mm | 1245 x 630 mm | 2000 x 1150 mm | 2500 x 1760 mm | 5500 x 2000 mm |
| Final compression | 80 t | 100 t | 120 t | 250 t | 1000 t |
| Hourly output Aluminium | ≤1 t/h | ≤1 t/h | ≤ 2.2 t/h | ≤6 t/h | ≤23 t/h |
| hourly output steel/copper | ≤3 t/h | ≤3 t/h | ≤ 6.5 t/h | ≤17 t/h | ≤67 t/h |
| Installed power | 37 kW | 37 kW | 37 or 55 kW | 110 or 180 kW | 270 kW |
